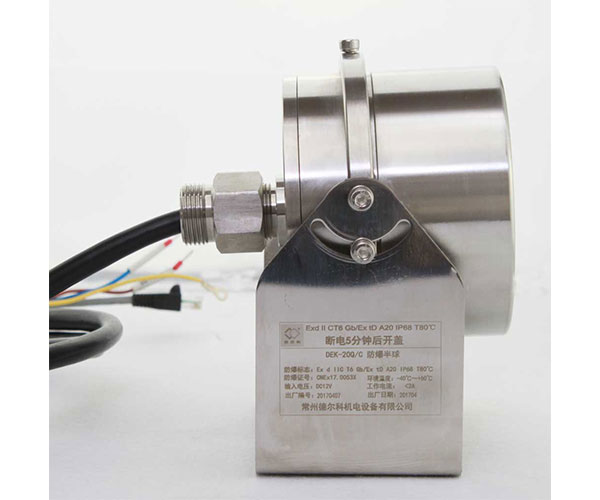

Exd Ⅱ CT6 Gb/Ex tD A20 T80 ℃
Explosion proof certificate number: CNEx17.0053X
Voltage 12VDC/POE
Working current ≤ 0.8A
Power consumption ≤ 10W
Electrical connection 2-core cable for power input coaxial cable for video signal output RJ45

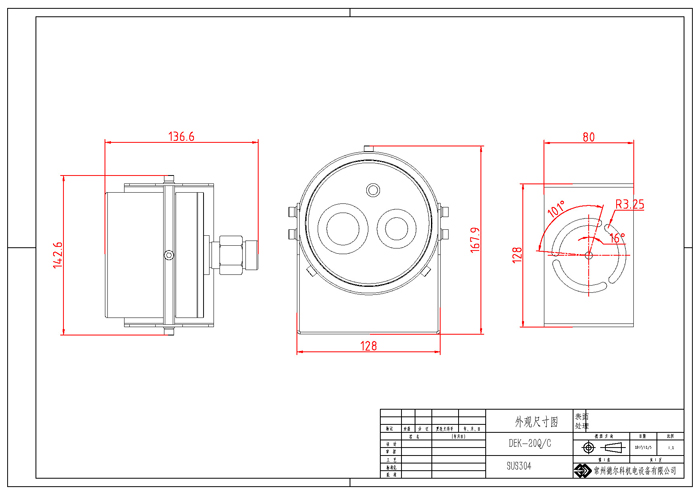

Mechanical indicators
Material: stainless steel 304 or 316L
Protection level IP68
Window transparent component thickness 10mm
Weight/Transportation Weight 3Kg/5Kg
Number of outlet holes 1
Thread size of outlet hole G-3/4 "
Installation method: fixed bracket
Camera (Weishi 3 million pixels)
Sensor type 1/3 "Progressive Scan CMOS
Minimum illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
0.1 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter 1/3 second to 1/100000 second
Lens 4mm, horizontal field of view angle: 60.5 ° (6mm, 8mm, 12mm optional)
Day night conversion mode ICR infrared filter type
Wide dynamic range digital wide dynamic range
Digital noise reduction 3D digital noise reduction
Compression standard
Video compression standards H.265/H.264/MJPEG
H. 265 encoding type Main Profile
H. 264 encoding type BaseLine Profile/Main Profile
Compressed output bit rate of 32 Kbps~8Mbps
Maximum image size 2048 x 1536
Frame rate 50Hz: 25fps (2048 x 15361920 x 10801280 x 720)
Image setting corridor mode, saturation, brightness, contrast, and sharpness can be adjusted through the client or browser
Backlight compensation support with selectable regions
Region of interest ROI supports setting one fixed region for each of the three bitstreams
Network functions
Interface protocols ONVIF, PSIA, CGI, ISAPI, GB28181
Intelligent alarm for mobile detection, dynamic analysis, obstruction alarm, network cable disconnection, IP address conflict, memory full, memory error
Intelligent alarm boundary detection, area intrusion detection, scene change detection, face detection, virtual focus detection, item leaving detection, item picking detection, illegal parking detection, personnel gathering detection, retrograde detection, hovering detection, rapid movement detection, entering area detection, leaving area detection
Supports protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,
QoS, IPv6, Bonjour
Universal functions include three streams, heartbeat, mirroring, password protection, video masking, watermark technology, anonymous access, and IP address filtering
Interface
Communication interface: 1 RJ45 10M/100M adaptive Ethernet port
Infrared irradiation distance of 20 meters/30 meters
