產品規格書
規 格： DEK-Q68RS/H/D
版 本： A01
頁 數： 2頁（包括封面）
日 期： 2020年

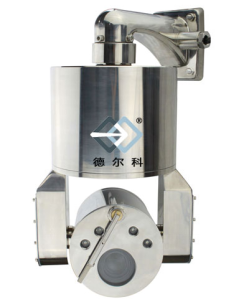

Product Description:
This product is a new generation of explosion-proof monitoring equipment, which adopts more advanced manufacturing processes, making the quality and performance of the product at the forefront. This product can be applied separately in environments with flammable and explosive gases and combustible dust. The window is made of tempered glass, which is sturdy and durable while ensuring clear image quality. Equipped with low-temperature automatic heating function. 1 outlet hole for explosion-proof connection using explosion-proof flexible pipes.
1. Explosion proof level Exd Ⅱ CT6 Gb/Ex tDA20 IP68, T80 ℃
2. Stainless steel material design: 304/316L
3. Tempered coated high-strength glass windows
4. Stable and highly reliable, with a dustproof and waterproof level of IP68
5. Rotate 360 ° continuously in the horizontal direction, and -90 ° (downward) to 0 ° (horizontal) in the vertical direction
6. High precision stepper motor wiper, supports customization
7. Standard infrared fill light, with a distance of up to 80 meters
8. Equipped with automatic constant temperature function, suitable for harsh weather conditions
9. Support, ONVIF, Dahua Protocol
技術參數：
型號 | DEK-Q68RS/H/D |
攝像機參數 | |
攝像機 | 200萬高清攝像機(可選配) |
白平衡 | （自動/手動/自動跟蹤白平衡/室外/室內/日光燈白平衡/鈉燈白平衡） |
像素 | 1920×1080 |
圖像傳感器 | 1/2.8" Progressive Scan CMOS |
最低照度 | 彩色：0.05Lux @ (F1.6，AGC ON)；黑白：0.01Lux @(F1.6，AGC ON) |
視頻壓縮 | H.265/H.264/MJPEG |
護罩參數 | |
風扇 | 標配 |
風冷加熱系統 | 自動加熱系統≤8℃±5℃開啟，≥20℃±5℃關閉；自動風冷系統≥37℃±5℃開啟，≤20℃±5℃關閉。 |
一般規范 | |
防爆等級 | ExdⅡCT6 Gb/Ex tDA20 IP68，T80℃ |
電源 | AC220V/DC24V |
轉速 | 水平轉速：0.01-60°/s 俯仰轉速：0.01-60°/s |
功耗 | 50W/70W（恒溫裝置啟動） |
工作溫度 | -40℃-+65℃ |
防護等級 | IP68 |
紅外投射距離 | 100米 |
紅外控制 | 支持 |
預置位數量 | 支持255個預置位，8條巡航掃描 |
水平方向 | 360°連續轉動 |
垂直方向 | -90°（向下）～0°（水平） |
材質 | 304/316L不銹鋼 |
出線孔 | 1個G3/4或NPT3/4 |
電氣連接 | 綜合電纜連接電源、控制、RJ45 |
重量 | 22kg(含攝像機) |
安裝方式 | 吸頂式安裝、壁裝支架安裝 |
