Exd II CT6 Gb/DIP A21 TA, T6
Explosion proof certificate number: CNEx17.4582X
Mechanical indicators
Material: stainless steel 304 or 316L
Surface treatment: electro polishing
Protection level: IP68
Horizontal rotation: 360 ° continuous rotation
Vertical rotation: 0 °~90 °
Horizontal rotation speed: 0.1 °/S~300 °/S smooth variable speed
Vertical rotation speed: 0.1 °/S~240 °/S Smooth speed change
Speed matching: The rotation speed is automatically adjusted according to the amplitude of the keyboard joystick and the magnification of the lens
Pre set rotation speed: 540 °/S
Weight: 12Kg

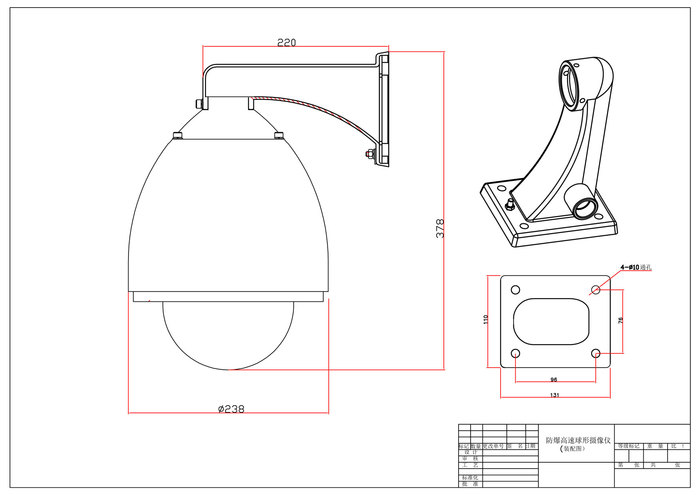

Installation method: ceiling mounted installation, wall mounted bracket installation
Smart functions
Smart tracking: supports multiple tracking methods such as manual tracking, panoramic tracking, and event tracking, and supports multi scene cruise tracking function
Smart detection: supports facial detection, area intrusion detection, boundary detection, entering area detection, leaving area detection, hovering detection, personnel gathering detection, rapid movement detection, parking detection, item leaving detection, item retrieval detection, audio anomaly detection, movement detection, and video occlusion detection functions
Smart road monitoring: supports license plate capture and retrieval, multi scene cruise detection, and cloud storage service functions
Smart Recording: Supports network interruption and continuous transmission function to ensure that the recording is not lost, and works with Smart NVR to achieve secondary intelligent retrieval, analysis, and condensed playback of event recordings
Smart image enhancement: supports fog penetration, strong light suppression, and electronic stabilization functions
Smart encoding: supports low bit rate, ROI enhanced encoding, and SVC adaptive encoding technology
Smart alarm: supports detection and linkage alarm of network cable disconnection, IP address conflict, full memory, memory error, and illegal access anomalies
System functions:
Using high-performance sensors, images are clear, and the maximum resolution can reach 1920x1080
Precision motor drive, sensitive response, smooth operation, accuracy deviation less than 0.1 degrees, no image shake at any speed
Supports standard API development interfaces, supports SDK, ONVIF, CGI, PSIA, GB/T28181, and E-home protocol access
Supports PAL/NTSC standard switching, with good regional applicability
Support automatic recognition of HIKVISION and Pelco P/D protocols under RS-485 control
Supports 3D intelligent positioning function, combined with DVR/client software/IE to achieve click tracking and amplification
Support system dual backup function to ensure data is not lost during power outages
Supports power-off state memory function, automatically returning to the pan tilt and lens state before power-off after power-off
Lightning protection, surge prevention, and surge prevention
Outdoor ball reaches IP67 protection level
Supports timed task function, with multiple timed task modes to choose from
Movement function:
20x optical zoom, 16x digital zoom
Supports automatic aperture, autofocus, automatic white balance, backlight compensation, wide dynamic, 3D digital noise reduction
Supports ultra-low illumination, 0.02Lux/F1.6 (color), 0.002Lux/F1.6 (black and white)
Support regional exposure and focus functions
Support polygon privacy masking, multiple areas can be set, multiple colors, and mosaic options available
Network functions:
Supports Ethernet control and analog output
Supports 128G Micro SD/SDHC/SDXC card storage
Supports PCM high-quality audio encoding
Supports NAS storage for video recording, which can be disconnected and continuously transmitted, and can support up to 8 NAS disks
Supports three-level user permission management, authorized users and passwords, supports HTTPS encryption and IEEE 802.1x network access control, IP address filtering
Supports three stream technology
Supports H.264/MJPEG4 video compression algorithm, supports multi-level video quality configuration, H.264 encoding complexity Baseline/Main/High Profile, supports real-time video output resolution of HDTV1080p (compliant with SMPTE274M standard), 960p, and HDTV720p (compliant with SMPTE296M standard)
Supports 1 audio input and 1 audio output
Pan tilt function:
360 ° continuous rotation in horizontal direction, -5 ° -90 ° in vertical direction, no blind spots for monitoring
The maximum speed of horizontal preset points can reach 540 °/s, and the maximum speed of vertical preset points can reach 400 °/s
Horizontal keying speed is 0.1 ° -300 °/s, and vertical keying speed is 0.1 ° -240 °/s
Supports 300 preset positions and has preset point video freezing function
Supports 8 cruise scans, each with the ability to add 32 preset points
Supports 4 pattern scans, with each path recording time greater than 10 minutes
Supports scaling and watchkeeping functions
Supports alarm function, with built-in 7 alarm inputs and 2 alarm outputs, and supports alarm linkage function
Image sensor: 1/2.8 "Progressive Scan CMOS
Effective pixels: 2.23 million pixels
Minimum illumination:
Color: 0.02Lux @ (F1.6, AGC ON)
Black and white: 0.002Lux @ (F1.6, AGC ON)
White balance: automatic/manual/automatic tracking white balance/indoor/outdoor/outdoor automatic/sodium lamp white balance
Gain control: automatic/manual
3D noise reduction: supported
Signal to noise ratio: ≥ 55dB
Backlight compensation: supported
Wide dynamic: support
Regional exposure: supported
Regional Focus: Support
Electronic shutter: 50Hz: 1/1-1/30000s
60Hz: 1/1-1/30000s
Day and night mode: automatic ICR color to black
Digital doubling: 16x
Privacy Masking: Up to 24 polygonal areas; Supports multiple colors and mosaic options
Focus mode: automatic/semi-automatic/manual
Focal length: 4.7mm -94mm, 20x optical
Multiplying speed: approximately 2.7 seconds (optical, wide-angle telescope)
Horizontal viewing angle: 58.3-3.2 degrees (wide angle far view)
Close up range: 10-1500mm (wide-angle telescope)
Aperture: F1.6-F3.5
Power outage memory: supported
Watch function: preset points/pattern scanning/cruise scanning/horizontal scanning/vertical scanning/random scanning/frame scanning/panoramic scanning
Azimuth information display: on/off
Pre set point video freezing: supported
Timed tasks: preset points/pattern scanning/cruise scanning/automatic scanning/vertical scanning/random scanning/frame scanning/panoramic scanning/ball machine restart/ball machine verification/auxiliary output
Maximum image size: 1920 x 1080
Main stream resolution and frame rate:
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Sub stream resolution and frame rate:
50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Third stream resolution and frame rate:
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (352 x 288), 25fps (176 x 144)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 480), 30fps (352 x 240), 30fps (176 x 120)
Video compression: H.264/MJPEG/MPEG4, H.264 encoding supports Baseline/Main/High Profile
Network protocol:
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,
DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User permissions: Up to 32 users, divided into 3 levels: administrator, operator, and regular user
Security mode: Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x Network Access Control, IP Address Filtering
Network interface: Built in RJ45 network port, supporting 10M/100M network data
SD card interface: Built in Micro SD card slot, supports Micro SD/SDHC/SDXC cards (up to 128G), and can support manual recording/alarm recording
RS485 control interface:
Adopting half duplex mode, supporting adaptive HIKVISION, PELCO-P, and PELCO-D (additive) protocols
Application programming interface:
Open API that supports software integration, supports standard protocols (ONVIF, PSIA, CGI), supports SDK and third-party management platform access, supports GB/T28181 protocol, supports E-home protocol
Client: Supports iVMS-4200 client
Browser: Supports IE7+, Chrome18+, Firefox 5.0+, Safari 5.02+browsers
