Exd II CT6 Gb/DIP A21 TA, T6
Explosion proof certificate number: CNEx17.4582X
Mechanical indicators
Material: stainless steel 304 or 316L
Surface treatment: electro polishing
Protection level: IP68
Horizontal rotation: 360 ° continuous rotation
Vertical rotation: 0 °~90 °
Horizontal rotation speed: 0.1 °/S~300 °/S smooth variable speed
Vertical rotation speed: 0.1 °/S~240 °/S Smooth speed change
Speed matching: The rotation speed is automatically adjusted according to the amplitude of the keyboard joystick and the magnification of the lens
Pre set rotation speed: 540 °/S
Weight: 12Kg

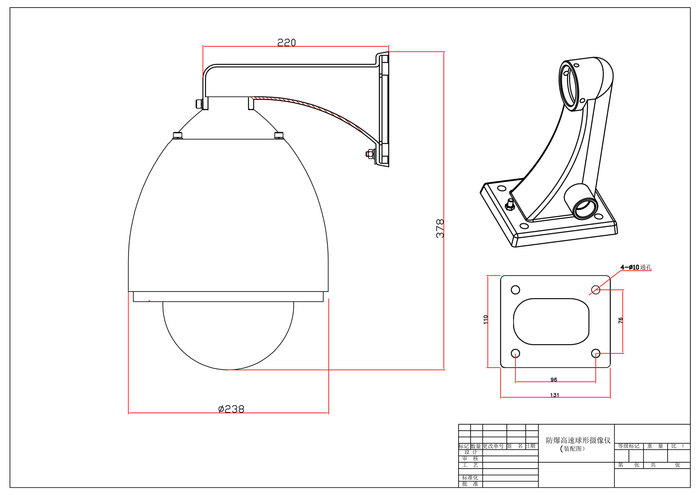

Installation method: ceiling mounted installation, wall mounted bracket installation
Network functions:
Supports Ethernet control and analog output
Supports 128G Micro SD/SDHC/SDXC card storage
Supports PCM high-quality audio encoding
Supports NAS storage for video recording, which can be disconnected and continuously transmitted, and can support up to 8 NAS disks
Supports three-level user permission management, authorized users and passwords, supports HTTPS encryption and IEEE 802.1x network access control, IP address filtering
Supports three stream technology
Supports H.264/MJPEG4 video compression algorithm, supports multi-level video quality configuration, H.264 encoding complexity Baseline/Main/High Profile, supports real-time video output resolution of HDTV1080p (compliant with SMPTE274M standard), 960p, and HDTV720p (compliant with SMPTE296M standard)
Supports 1 audio input and 1 audio output
Pan tilt function:
360 ° continuous rotation in horizontal direction, -5 ° -90 ° in vertical direction, no blind spots for monitoring
The maximum speed of horizontal preset points can reach 540 °/s, and the maximum speed of vertical preset points can reach 400 °/s
Horizontal keying speed is 0.1 ° -300 °/s, and vertical keying speed is 0.1 ° -240 °/s
Supports 300 preset positions and has preset point video freezing function
Supports 8 cruise scans, each with the ability to add 32 preset points
Supports 4 pattern scans, with each path recording time greater than 10 minutes
Supports scaling and watchkeeping functions
Supports alarm function, with built-in 7 alarm inputs and 2 alarm outputs, and supports alarm linkage function
Image sensor: 1/2.8 "Progressive Scan CMOS
Effective pixels: 2.23 million pixels
Minimum illumination:
Color: 0.02Lux @ (F1.6, AGC ON)
Black and white: 0.002Lux @ (F1.6, AGC ON)
White balance: automatic/manual/automatic tracking white balance/indoor/outdoor/outdoor automatic/sodium lamp white balance
Gain control: automatic/manual
3D noise reduction: supported
Signal to noise ratio: ≥ 55dB
Backlight compensation: supported
Wide dynamic: support
Regional exposure: supported
Regional Focus: Support
Electronic shutter: 50Hz: 1/1-1/30000s
60Hz: 1/1-1/30000s
Day and night mode: automatic ICR color to black
Digital doubling: 16x
Privacy Masking: Up to 24 polygonal areas; Supports multiple colors and mosaic options
Focus mode: automatic/semi-automatic/manual
Focal length: 4.7mm -94mm, 20x optical
Multiplying speed: approximately 2.7 seconds (optical, wide-angle telescope)
Horizontal viewing angle: 58.3-3.2 degrees (wide angle far view)
Close up range: 10-1500mm (wide-angle telescope)
Aperture: F1.6-F3.5
Power outage memory: supported
Watch function: preset points/pattern scanning/cruise scanning/horizontal scanning/vertical scanning/random scanning/frame scanning/panoramic scanning
Azimuth information display: on/off
Pre set point video freezing: supported
Timed tasks: preset points/pattern scanning/cruise scanning/automatic scanning/vertical scanning/random scanning/frame scanning/panoramic scanning/ball machine restart/ball machine verification/auxiliary output
Maximum image size: 1920 x 1080
Main stream resolution and frame rate:
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Sub stream resolution and frame rate:
50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Third stream resolution and frame rate:
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (352 x 288), 25fps (176 x 144)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 480), 30fps (352 x 240), 30fps (176 x 120)
Video compression: H.264/MJPEG/MPEG4, H.264 encoding supports Baseline/Main/High Profile
Network protocol:
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,
DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User permissions: Up to 32 users, divided into 3 levels: administrator, operator, and regular user
Security mode: Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x Network Access Control, IP Address Filtering
Network interface: Built in RJ45 network port, supporting 10M/100M network data
SD card interface: Built in Micro SD card slot, supports Micro SD/SDHC/SDXC cards (up to 128G), and can support manual recording/alarm recording
RS485 control interface:
Adopting half duplex mode, supporting adaptive Dahua, PELCO-P, and PELCO-D (additive) protocols
Application programming interface:
Open API that supports software integration, supports standard protocols (ONVIF, PSIA, CGI), Dahua SDK and third-party management platform access, supports GB/T28181 protocol, supports E-home protocol
Client: Supports iVMS-4200 client
Browser: Supports IE7+, Chrome18+, Firefox 5.0+, Safari 5.02+browsers
