Product Description:
This product is an advanced explosion-proof junction box made of stainless steel material with a beautiful appearance, meeting the needs of various environments; The surface is treated with stainless steel wire drawing, and surface spraying can also be chosen according to the needs; The product is not only sturdy and durable, but also ensures the quality of the product; Equipped with 6 G3/4 "threading ports; equipped with internal installation of power modules, fiber optic transceivers, power circuit breakers, etc., easy to install and maintain.
Product size:
技術參數：
| 型號 | DEK-JX325 |
| 一般參數 | |
| 防爆標志 | ExdⅡB T6 Gb/Ex tD A21 IP66 T80℃/Ex tD A21 IP68 T80℃ |
| 防護等級 | IP66/68 |
| 材質 | 不銹鋼304 或316L |
| 表面處理 | 不銹鋼拉絲、可選表面噴涂 |
| 外形尺寸 | 350*300*135.5 |
| 內部空間 | 330(L) x 250(W) x 117(H) mm |
| 重量 | 22Kg |
| 出線孔數量 | 6 |
| 出線孔規格 | G-3/4”外絲 |
| 環境溫度 | -40C~+60C |
| 安裝方式 | 壁裝、底座、固定支架 |

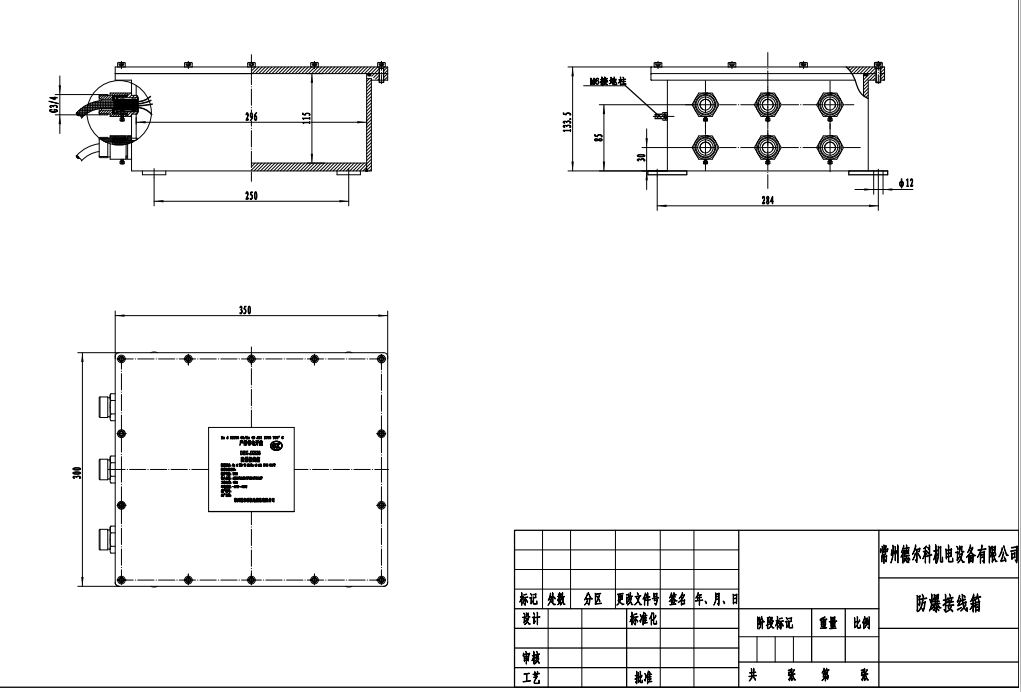

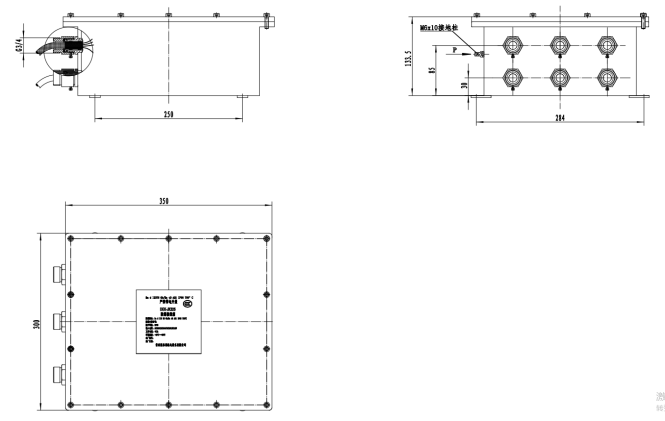

Outline drawing of DEK-JX325 explosion-proof junction box:
