Exd Ⅱ CT6 Gb/Ex tD A20 T80 ℃
Explosion proof certificate number: CNEx17.0052X
Intelligent fire point detection function with multi-level fire point detection, efficient detection and reduced false alarms

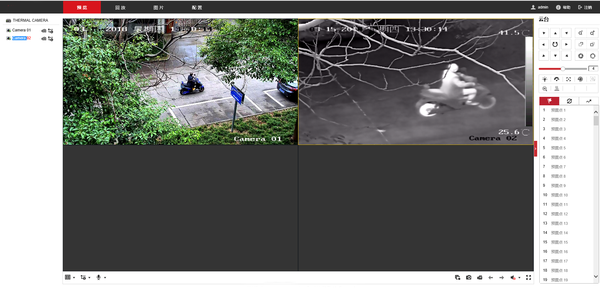

Visible light linkage doubles to check surrounding conditions
Perceived intelligent rules support area intrusion, boundary crossing, entry/exit area detection
Excellent thermal imaging image effect with a resolution of 640 x 512
AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement
14 adjustable false colors
Thermal imaging automatic focusing supports automatic/semi-automatic/electric focusing
Pan tilt function continuously rotates 360 ° horizontally and vertically from -09 ° to+90 °
Key control speed horizontal 0.1 ° -40 °/s vertical 0.1 ° -40 °/s
300 preset positions with preset video freezing function
8 cruise scans, each capable of adding 32 preset points
4 pattern scans, with each path recording time greater than 10 minutes
Accurate temperature measurement (- T) maximum temperature cross positioning
Supports 1 line temperature measurement, 10 box temperature measurements, and 10 point temperature measurements
100 associated temperature measurement preset positions
Temperature measurement range: -40 ℃ -550 ℃
Temperature measurement accuracy: ± 2 degrees (or ± 2% of the range)
Temperature abnormal alarm
? Support for wipers
Supports 7 hardware alarm inputs and 2 alarm outputs
Outdoor IP68 protection level, lightning protection, surge protection, and surge protection
Mechanical indicators
Material: stainless steel 316L
Protection level: IP68
Horizontal rotation: 360 °
Vertical rotation:+90 °~-90 °
Horizontal rotation speed: 0.1-40 °/S
Vertical rotation speed: 0.1-40 °/S
Unit weight: 32Kg
Transportation weight: 35Kg
Installation method: fixed bracket, base, column
Electrical indicators
Input voltage: 220VAC DC24V
Input voltage range: ± 10%
Working current: ＜ 500mA (220VAC) Power consumption: approximately 100W
Communication method: RS-485
Communication speed: adaptive
Communication protocol: PELCO-D/P ONVIF2.0
Infrared distance: 50, 80, 100 meters
Number of preset bits: 64
Pre positioning accuracy: ≤ 0.1 °
Electrical connection: 3-core cable connects to power supply, 2-core shielded cable connects to control signal, coaxial cable outputs video signal or RJ45
Thermal imaging parameters
Sensor type: Vanadium oxide uncooled focal plane detector
Maximum image size 640 * 512
Pixel 17 μ M
Response bands 8-14 μ M
Noise equivalent temperature difference<50mk (@ 25 ° C, F #=1.0)
Focal length 50mm
Spatial resolution 0.34
Detection distance (m) (person: 1.8m * 0.5m, vehicle: 1.4m * 4.0m)
Detection vehicle: 4510 Detection person: 1471
Identification vehicle: 1127 Identification person: 368
Identification vehicle: 564 Identification person: 184
Field of view angle 12.4 × 9.9
F-value 1
Focusing on automatic/semi-automatic/manual
Multiple false colors such as black hot/white hot/iron red/rainbow on the color palette (a total of 14 modes)
Visible light camera parameters
Sensor 1/2.8 inch high-performance CMOS
Resolution 1920 x 1080
Focal length 4.5-135mm
Field of view angle 59.8-3.0 ° (wide angle telescopic)
Low illumination 0.05Lux @ F1.6
Wide dynamic support
Day night conversion support
Digital noise reduction 3D noise reduction
Focusing on automatic/semi-automatic/electric
The supplementary light function supports 500m laser supplementary light
Intelligent adjustment of laser light brightness and angle according to the scene
Region enhancement ROI region of interest enhancement
Close up range: 10-1500mm (wide-angle telescope)
Multiplying speed: approximately 2.7 seconds (optical, wide-angle telescope)
Exposure mode: automatic exposure/aperture priority/shutter priority/manual exposure
Focus mode: automatic focus/one-time focus/manual focus
Wide dynamic: off/on, 4-level adjustable
Video compression standard: H.264/MJPEG
Compressed output bit rate: 32 Kbps~16Mbps
Image settings: saturation, brightness, and contrast can be adjusted through the client or IE browser
Storage function: supports micro SD
Intelligent alarm: movement detection, obstruction alarm, memory full, memory error
Supported protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional)
Universal features: dual stream, heartbeat, password protection
Communication interface: 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface
Interface protocols: ONVIF, PSIA, CGI
