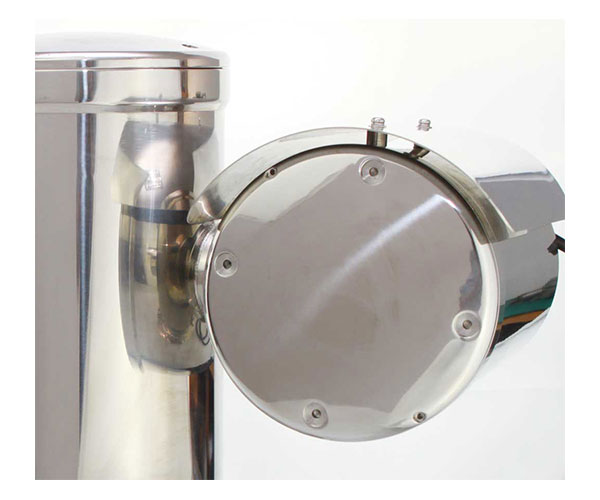

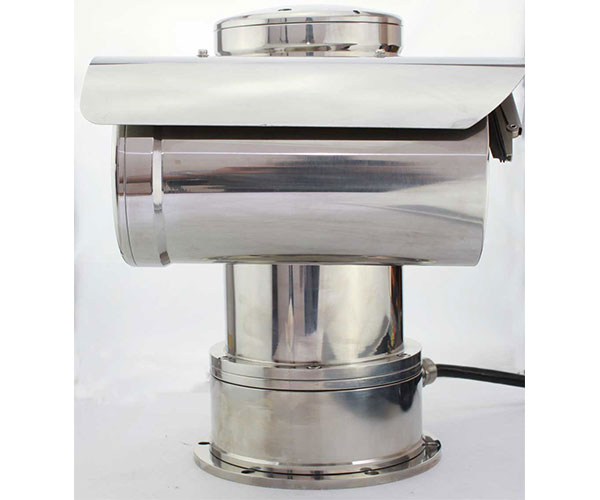

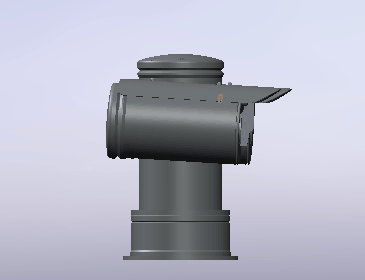

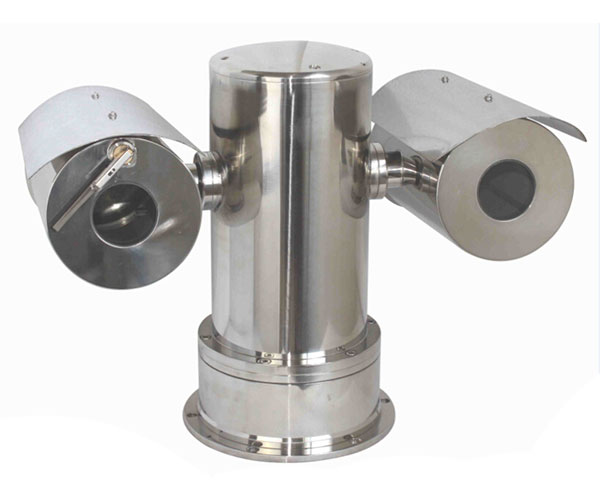

Explosion proof intelligent starry pan tilt camera
ExdⅡCT6 Gb/Ex tD A20 T80℃
Explosion proof certificate number: CNEx17.0052X
Mechanical indicators
Material: stainless steel 316L
Protection level: IP68

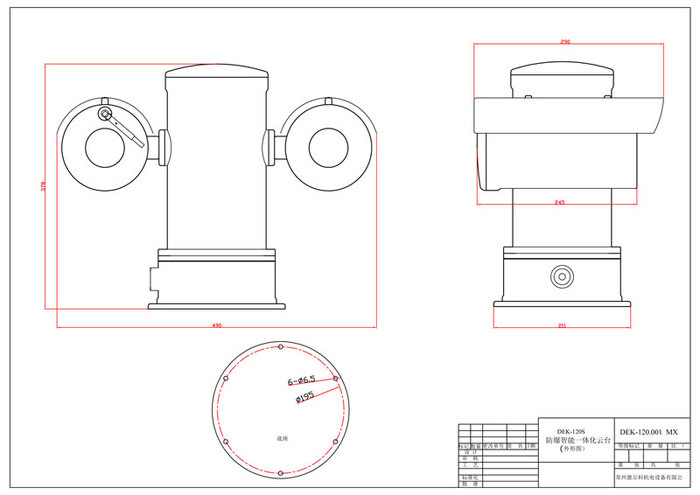

Dimensions of the inner chamber of the protective cover for use: 220 (L) x 80 (W) x 70 (H) mm
Horizontal rotation: 360 °
Vertical rotation:+90 °~-90 °
Horizontal rotation speed: 0.1-40 °/S
Vertical rotation speed: 0.1-40 °/S
Unit weight: 32Kg
Transportation weight: 35Kg
Installation method: fixed bracket, base, column
Electrical indicators
Input voltage: 220VAC/DC24V, only one of which is supported at the factory
Input voltage range: ± 10%
Working current: ＜ 250mA (220VAC), ＜ 3A (DC24V)
Power consumption: approximately 55W
Communication method: RS-485
Communication speed: adaptive
Communication protocol: PELCO-D/P, ONVIF2.0
Number of preset positions: 256
Pre positioning accuracy: ≤ 1 °
Electrical connection: 3-core power supply, 2-core shielded control signal, super Category 5 cable
High performance 2 megapixel 1/1.9 'CMOS
Equipped with 30x optical zoom, optical zoom f=6-180mm (F1.5 to 4.3)
The maximum resolution can reach 1980* 1080@60fps Clear image
Adopting full motion focusing, dynamic exposure, and dynamic balance algorithms with fully autonomous intellectual property rights
Supports 3D noise reduction, anti shake, fog penetration, ROI encoding and focusing, and privacy occlusion for 24 areas
Equipped with automatic aperture, electric shutter, and ICR filter switching functions to adapt to different monitoring environments
Applicable occasions
Suitable for large-scale warehouses, peripheral monitoring of residential areas, docks, parking lots, schools, stations, parks, and other large-scale monitoring places.
Product parameters
1/1.9 inch CMOS
Approximately 2.42 million pixels
≥ 1000TVL
1920 × 1080
Colorful silk 0.001Lux@F1.5 : ??: 0.0001Lux@F1.5
≥ 55dB
Mobile/Mobile/Tracking/Outdoor/Indoor/Outdoor Mobile/Sodium Lamp Mobile/Sodium Lamp
1/1 to 1/30000s
16x optical
Dynamic ICR filter color conversion
6mm~180mm
Level: 61.2 o to 2.32 o (near to far focus)
10mm~1500mm (near to far focus)
50Hz: 25fps (1920 x 1080), 50fps (1920 x 1080), 25fps (1280 x 960), 50fps (1280 x 960), 25fps (1280 x 720), 50fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 60fps (1920 x 1080), 30fps (1280 x 960), 60fps (1280 x 960), 30fps (1280 x 720), 60fps (1280 x 720)
50Hz: 25fps (704 × 576), 25fps (352 × 288)
60Hz: 30fps (704 × 480), 30fps (352 × 240)
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (352 x 288)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 480), 30fps (352 x 240)
H. 265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG
G. 711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Supports open APIs for software integration, standard protocols (Onvif, CGI, GB/T28181), DH-SDK, and third-party management platform interfaces
Using IE7 or higher versions (including IE7) for music, Firefox, Apple, and other IE browsers
Up to 20 channels (total bandwidth 48M)
Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x Network Access Control (User List)
Multi level user permission management
Network output/analog output
PELCOD/PELCOP protocol, DH-SD1 protocol, SONY VISCA protocol
RS485: Baud rate holding 96001920038400bps, VISCA 232: fixed baud rate 9600
Built in Micro-SD card slot, supports SD/SDHC/SDXC (up to 128G), can hold automatic recording/alarm recording, can hold continuous transmission after interruption, and recording is not lost
