ExdⅡCT6 Gb/Ex tD A20 T80℃
Explosion proof certificate number: CNEx17.0052X
Mechanical indicators
Material: stainless steel 316L
Protection level: IP68

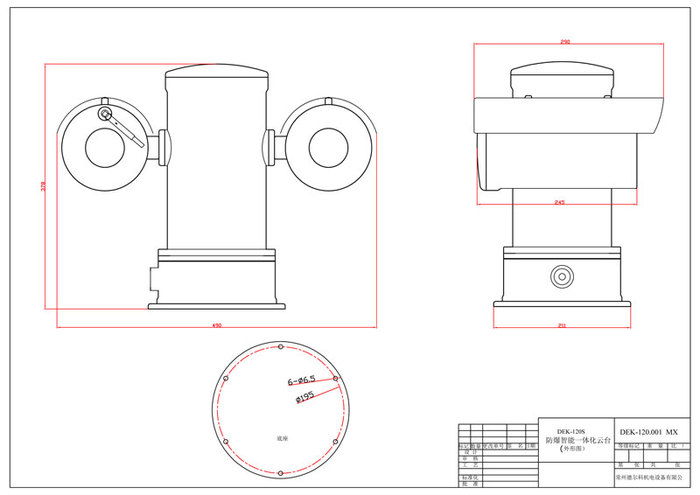

Dimensions of the inner chamber of the protective cover for use: 220 (L) x 80 (W) x 70 (H) mm
Horizontal rotation: 360 °
Vertical rotation:+90 °~-90 °
Horizontal rotation speed: 0.1-40 °/S
Vertical rotation speed: 0.1-40 °/S
Unit weight: 35Kg
Transportation weight: 35Kg
Installation method: fixed bracket, base, column
Electrical indicators
Input voltage: 220VAC AC24V DC24V
Input voltage range: ± 10%
Working current: ＜ 500mA (220VAC) Power consumption: approximately 50W
Communication method: RS-485
Communication speed: adaptive
Communication protocol: PELCO-D/P ONVIF2.0
Infrared distance: 50, 80, 100 meters
Number of preset positions: 256
Pre positioning accuracy: ≤ 0.1 °
Electrical connection: 3-core cable connects to power supply, 2-core shielded cable connects to control signal, coaxial cable outputs video signal or RJ45
Camera 2 million
30 times 2 million 1/1.8 "CMOS ICR day and night network high-definition all-in-one machine
Sensor type: 1/1.8 "Progressive Scan CMOS
Signal system: PAL/NTSC
Day night conversion mode: ICR infrared filter type
Signal to noise ratio: greater than 52dB
Electronic shutter: 1/1 second~1/30000 second
Resolution:
50Hz: 25fps (1920x1080) 60Hz: 30fps (1920x1080)
50Hz: 25fps (1280x720) 60Hz: 30fps (1280x720)
Minimum illumination:
Color: 0.001Lux @ (F1.6, AGC ON)
Black and white: 0.0001Lux @ (F1.6, AGC ON)
White balance: automatic 1/automatic 2/indoor/outdoor/manual/sodium lamp/fluorescent lamp
3D noise reduction: supported
Focal length: 4.3-129mm, 30x optical
Aperture: F1.6-F3.5
Horizontal viewing angle: 61.4-2.9 degrees (wide angle - far view)
Close up range: 10-1500mm (wide-angle telescope)
Multiplying speed: approximately 2.7 seconds (optical, wide-angle telescope)
Exposure mode: automatic exposure/aperture priority/shutter priority/manual exposure
Focus mode: automatic focus/one-time focus/manual focus
Wide dynamic: off/on, 4-level adjustable
Video compression standards: H.2654, H.265/MJPEG
Compressed output bit rate: 32 Kbps~16Mbps
Image settings: saturation, brightness, and contrast can be adjusted through the client or IE browser
Storage function: supports micro SD
Intelligent alarm: movement detection, obstruction alarm, memory full, memory error
Supported protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional)
Universal features: dual stream, heartbeat, password protection
Communication interface: 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface
Interface protocols: ONVIF, PSIA, CGI
